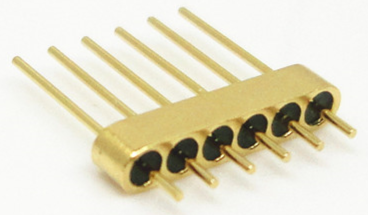

KH2-6H-160-02

KH2-6H-160-02 are small aluminum compatible connectors that provide tight and compact connections in DC, capacitive and hybrid circuits. Due to their design, they allow reliable soldering of aluminum and other materials with a high coefficient of expansion, designed for extreme temperature conditions. Durable pins allow you to attach or wire or tape to sides or ends.

Specifications:

Characteristic impedance	50 Ohm
Fabrication	The outer sheath and the inner conductor of the sheath are made of Kovar alloy, surface treatment with gold plating. The insulating medium is made of glass.
Standart	GJB976A-2009
Temperature	-55° ± 125°
Salt spray	48h
Voltage	Medium withstand voltage 500V, insulation resistance ≥ 1000MΩ
Leak tightness	Leak test requirements do not exceed 1.013x10-3 Pa.cm3/s
