Displays

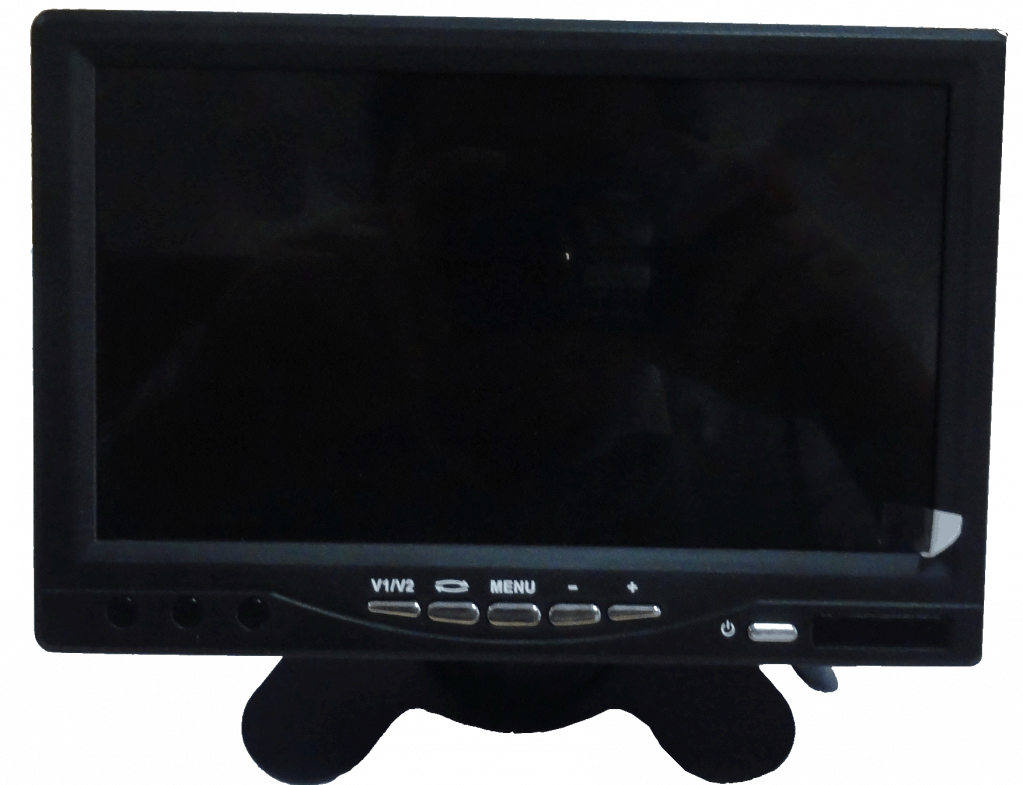

Skytop offer different monitors for automotive industry. 7/9 inch LCD Monitor – cooperate with car video recorder as a video output display use.
Features
- 7 or 9 inch original true color TFT LCD digital screen
- DC8-36V wide voltage design, suitable for various types of vehicles
- One channel reversing dedicated video input, with reversing the image strong cut
- DC12V output, can provide constant power to the camera
- Image up and down rotation
- Built-in ultra-thin speakers.
Specifications
| Screen Size | 7/9” inch(16:9) |
| Resolution | 800*480 |
| Video System | PAL/NTSC |
| Viewing Angles | 150°/140° |
| Brightness | 300cd/㎡ |
| Contrast Ratio | 300:1 |
| Viewing Scope | 154*86mm |
| Video Input | 2CH Independent Input(V1-V2) |
| Audio Input | 1 Channel |
| Reverse Rear-view | Auto switch(V2), Visual detection |
| DC12V Output | 12V/2A |
| Split Screen | NO |
| Operation | Remote Control or LCD Buttons |
| Extend Interface | Can Expand RS232 Port |
| Others | Image Mirror |
| Power Consumption | DC8-48V 5% 8W（without HDD） |
| Working Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
