Quartz Crystal Units Ceramic Resonators

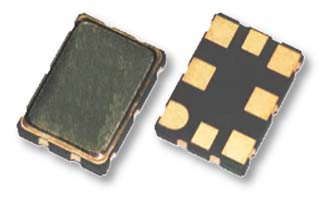

Skytop range of high performance clock oscillators provides 4 frequencies switchable from one oscillator. There is a choie of outputs, LVCMOS, HCSL, CML, LVPECL or LVDS. Frequency range is 15MHz to 2100MHz. The part is supplied in a standard 7 x 5mm SMD package with 8 pads.

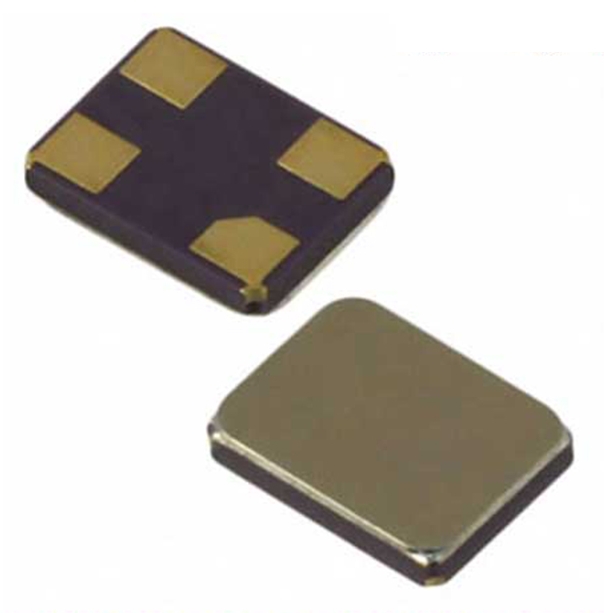

Quartz Crystals Optimized for Wi-Fi Applications

Skytop distrubutes a range of quartz crystals optimized for use in Wi-Fi applications. These applications require a crystal-controlled oscillator providing a stable and quiescent reference clock.

The parts detailed here are quartz crystal units designed and manufactured to have close tolerances and low Equivalent Series Resistance (ESR), necessary for quick start-up, stable oscillators as required in all Wi-Fi applications.
