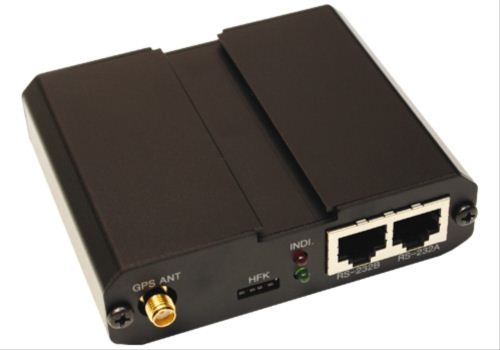

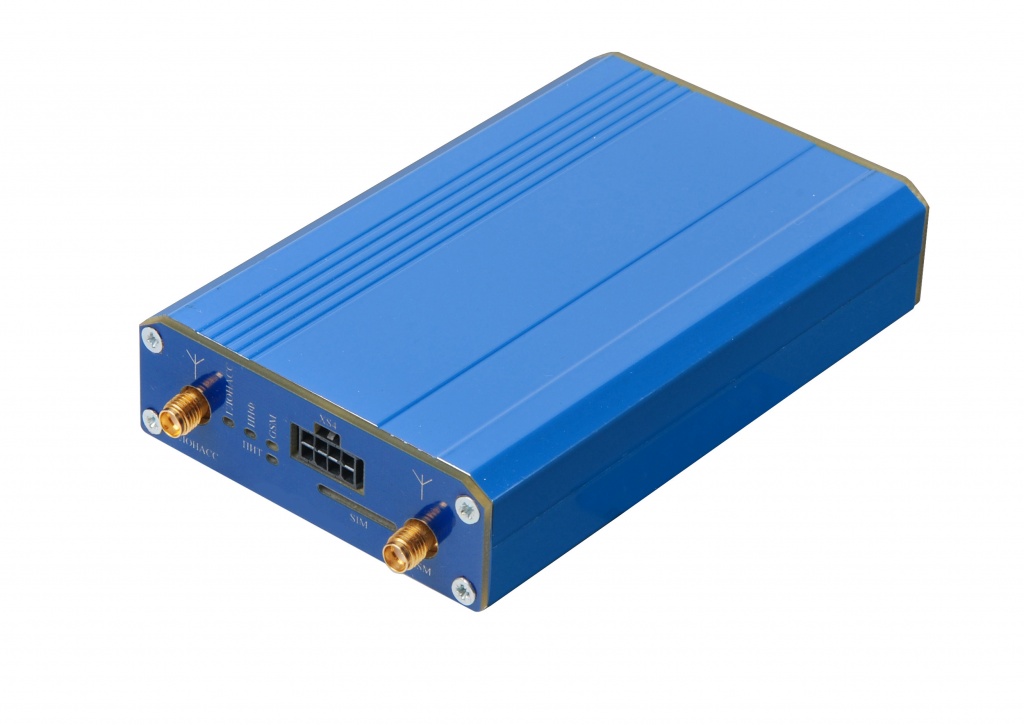

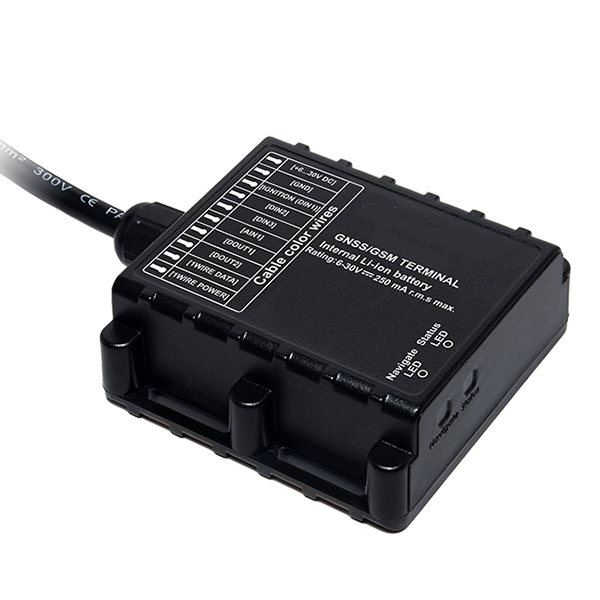

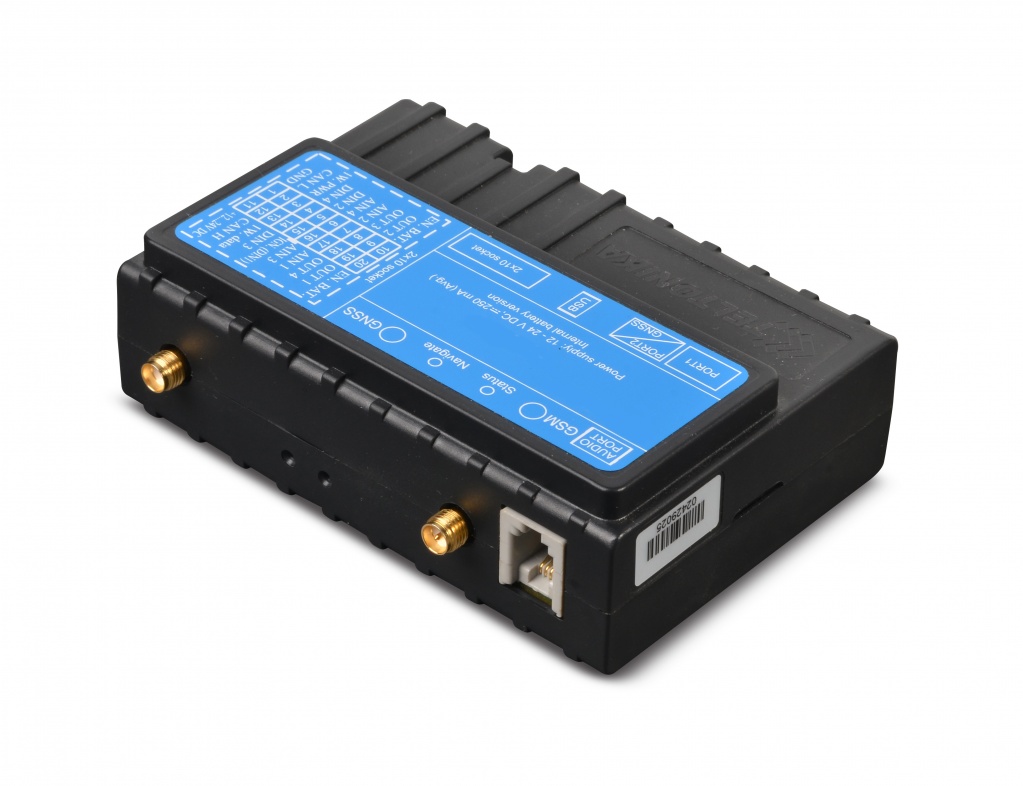

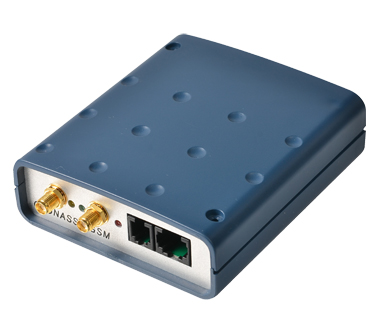

GLONASS/GPS trackers

Skytop offer a real-time advanced tracking terminals (trackers) with GPS/GLONASS and 3G/GSM connectivity with backup battery or without it, which is able to collect device coordinates and other useful data and transfer them via 3G/GSM network. Devices is perfectly suitable for applications where location acquirement of remote objects is needed:

• fleet management,
• car rental companies,
• taxi companies,
• public transport, logistics companies,
• personal cars and so on.

Features

• Integrated 3G/GSM module for worldwide usage even in countries where only 3G is available. Controlled switching between 3G and GSM networks
• Easy to mount and fasten firmly
• LED indication
• Integrated Ni-MH back up battery (option)
• Real-Time tracking
• External 3G/GSM antenna to ensure steady data stream while object is in low signal coverage areas
• External GNSS antenna for high quality tracking at all-time even when object is in complex areas – from closed/urban streets or canyons to dense forests
• Smart data acquisition based on:

– Time
– Distance
– Angle
– Speed difference (Value taken from GPS or Teltonika Vehicle CAN adapters)
– Ignition or any other I/O event

• Saving information to Micro SD card, preventing data loss after prolonged time under no 3G/GSM coverage
• Sending acquired data via 3G or GPRS (TCP/IP and UDP/IP protocols)
• Virtual Odometer
• Dual CAN J1939 reading enables DDD data files to be downloaded remotely
• J1708 CAN reading interface
• RS485 and 2x RS232 interfaces for advanced Fuel Level tracking or usage of external devices such as Garmin, LLS, RFID reader, etc.
• Power saving in Sleep or Deep Sleep modes
• Authorized driving with up to 500 unique iButton ID list
• Time synchronization by NTP (Network Time Protocol) if GPS/GLONASS signal is absent
• SMS sending/receiving via GPRS
• Time-zone (UTC/GMT) selection
• Dynamic SMS events
• Vehicle Can Adapter.

Specification
