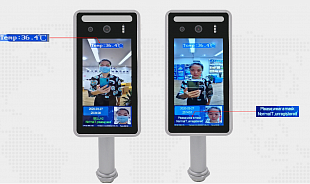

Thermal camera with monitor DS-2TD4035D-25
IR Function
- Non-contact measurement of the temperature of the human body in the area of the camera
- Display on screen images and measurement results in real time
- High-performance IRarray, up to 150m IR distance
Network Function
- Ethernet control and analog output
- Data transmission over Ethernet and Wi-Fi in the control and access control system
- View image and realize control by IEand client software
|
Model Parameter |
DS-2TD4035D-25 |
|
Thermal camera with monitor |
|
|
Max. Resolution |
384 × 288 |
|
Response waveband |
8~14μm |
|
NETD |
< 50mk(@25°C,F#=1.0) |
|
MRTD |
MRTD < 100mk(@25°C,F#=1.0) |
|
MRTD |
0.6mrad |
|
Reference Object Size |
Human: 1.8*0.5m |
|
Lens (focal length) |
25mm |
|
Detection range (Humans) |
500m |
|
Recognition range (Humans) |
125m |
|
Identification range (Humans) |
63m |
|
Field angle |
21.7°x16.4° |
|
F number |
1.0 |
|
Image Setting |
Brightness, AGC, DDE, FFC adjustable via client software or web browser |
|
Color Palette |
White Hot, Black Hot, Fusion1, Rainbow, Fusion2, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice Fire, Rain, Red Hot, Green Hot |
|
General |
Menu language |
|
Power |
10-16VDC |
|
Working temperature Humidity |
24 VAC: -40 ℃-60℃(-40℉-140℉) |
|
Protection level |
IP66 |
