BP3107

Custom

BP3107

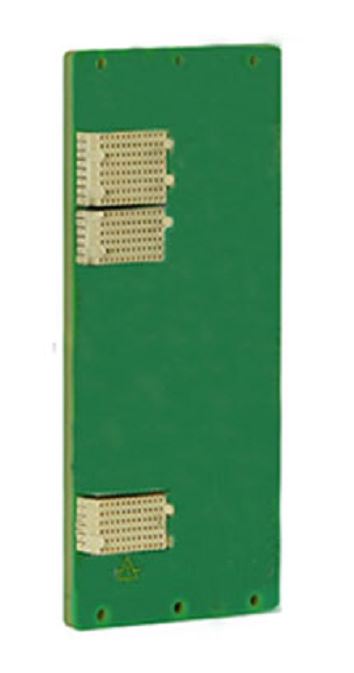

3U CompactPCI Serial backplane
Key features:
  • Designed special for Ethernet Switch
  • G101 Men Mikro Electronik Co., Ltd
  • PICMG CPCI-S.0 specification compliant
  • Hybrid configuration provides one CPCI Serial slot and 9 RJ45 connectors on rear side
  • The BP3107 guarantees high speed, high efficiency security and transmission stability
  • The BP3107 with G101 features 12 Gigabit Ethernet ports: 3 on front and 9 on rear whithout rear transmission module.
Technical Data
Electrical Specifications

  • Backplane Connectors: IEC 1076-4-101, 2 mm press-fit pin and socket
  • Connector Pitch: 4 HP (0.8") spacing
  • 9 Gigabit Ehernet channels
  • Transmission Rate: 1000 Mbit/s
  • Characteristic of Impedance: 100 ohms ±10%
Mechanical Specifications
  • Dimensions: conforming to CompactPCI Serial specification for 3U boards
  • Weight: 200g
  • Backplane Material: FR4
Environmental Specifications
  • Temperature range (operation): - 40.. +85°C
  • Temperature range (storage): -40..+85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300m to + 3,000m
  • Shock: 15g/11ms
  • Bump: 10g/16ms
  • Vibration (sinusoidal): 2g/10..200Hz
  • Conformalcoating on request
MTBF
  • 500 000 h @ 40°C (derived from MIL-HDBK-217F)

Documentation

BP3107- : 397.5
