BK4101
Industrial Keyboard
T h e B K 4 1 0 1 i s U S B compatible. The BK4101 can be plugged into any USB port or hub. The Bk4101 is a very high specification.
BK-4101
OEM Industrial Keyboard

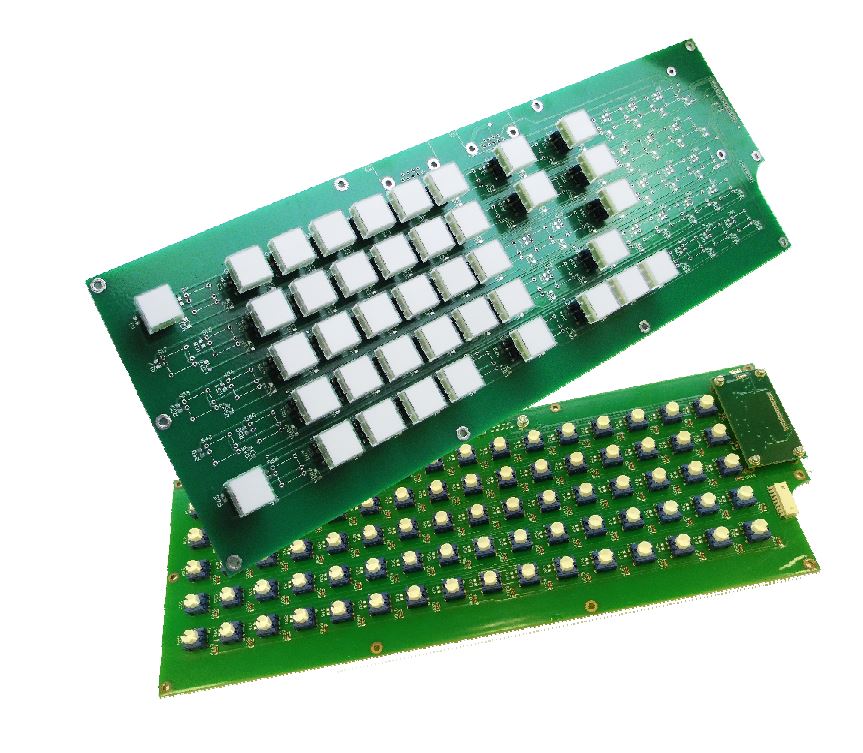

The Keypad of the BK4101 is specially designed for harsh environment and special water proof design, which make it a good choice for embedded solutions. Also the BK4101 is provided for eventuality of variation set of switches by user. Maximum number of one is 90.
The BK4101 has a special connector for the quadrature component s of s igna l by pointing devi ce. Bal l i s ti c tracking is result by intuitive tracking algorithm to provide increased cursor resolution when tracking fast whilst retaining the original resolution for tracking ccurately at slow speeds. It allows to use this device in systems with high requirements for precision t a r g e ti n g. T h e BK4 1 0 1 i s designed as system, where reliability, robustness and an extensive life span are essential.
Key Switch
· Key type: 3FT (MEC)
· Number of Keys: up to 90 keys
· Life: 10 million cycles
· Travel: 1.8mm
· Actuation force: 2.5H
· Feedback: Tactile with mechanical snap
Communication interface:
· USB 2.0 HID 1.11 compatible
· Quadrature components of signal by pointing device
Electrical Specifications
· DC +5V +/- 10% (USB), max 200mA
Mechanical Specifications
· Dimensions: 347mm x 128mm x 23mm
· Weight: 400g
Environmental Specifications
· Temperature range (operation): -40..+115°C
· Relative humidity (operation): max. 95% non-condensing
· Relative humidity (storage): max. 95% non-condensing
· Altitude: -300m to + 3,000m
· Shock: 15g/11ms
· Bump: 10g/16ms
· Vibration (sinusoidal): 2g/10..200Hz
· Protection: IP67
MTBF
· 400 000 h @ 40°C (derived from MIL-HDBK-217F)
Software Support
· Driver software can be found in the data sheet of the CPU board that you use
OEM Industrial Keyboard
- USB 2.0 HID 1.11 compatible
- Special connector for the quadrature
- components by pointing device
- Intuitive tracking algorithm
- Specially design for 3FT MEC switches
- Up to 90-Key functionality
- Variable set of switches
The Keypad of the BK4101 is specially designed for harsh environment and special water proof design, which make it a good choice for embedded solutions. Also the BK4101 is provided for eventuality of variation set of switches by user. Maximum number of one is 90.
The BK4101 has a special connector for the quadrature component s of s igna l by pointing devi ce. Bal l i s ti c tracking is result by intuitive tracking algorithm to provide increased cursor resolution when tracking fast whilst retaining the original resolution for tracking ccurately at slow speeds. It allows to use this device in systems with high requirements for precision t a r g e ti n g. T h e BK4 1 0 1 i s designed as system, where reliability, robustness and an extensive life span are essential.
Key Switch
· Key type: 3FT (MEC)
· Number of Keys: up to 90 keys
· Life: 10 million cycles
· Travel: 1.8mm
· Actuation force: 2.5H
· Feedback: Tactile with mechanical snap
Communication interface:
· USB 2.0 HID 1.11 compatible
· Quadrature components of signal by pointing device
Electrical Specifications
· DC +5V +/- 10% (USB), max 200mA
Mechanical Specifications
· Dimensions: 347mm x 128mm x 23mm
· Weight: 400g
Environmental Specifications
· Temperature range (operation): -40..+115°C
· Relative humidity (operation): max. 95% non-condensing
· Relative humidity (storage): max. 95% non-condensing
· Altitude: -300m to + 3,000m
· Shock: 15g/11ms
· Bump: 10g/16ms
· Vibration (sinusoidal): 2g/10..200Hz
· Protection: IP67
MTBF
· 400 000 h @ 40°C (derived from MIL-HDBK-217F)
Software Support
· Driver software can be found in the data sheet of the CPU board that you use
